VALX Axles

VALX Drum Brake Axles

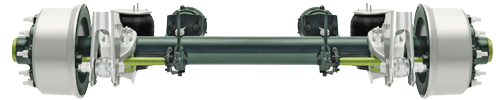

valx_drum500

Specifications	DRUM 420	DRUM 360
Axle load	9000 kg	9000 kg
Wheel size	22.5"	19.5"
Axle beam	1 piece ~ Ø 146×10	1 piece ~ Ø 146×10
Hub offset	0 mm	0 mm
Wheelbolts and dimensions	10 ~ M22 × 1.5	8 - 10 ~ M22 × 1.5
Wheel bolt circle	335 mm	275 / 335 mm
Brake	VALX Drum	VALX Drum
Brake dimensions	420 x 180 mm	360 x 200 mm
Bearings	Timken: B-145662 ~ B-145649	Timken: B-145662 ~ B-145649
Tyre mounting	Single	Single
Paint system	E-coating	E-coating
Seal	SKF 4 lip	SKF 4 lip
Air suspension	Weweler MBS	Weweler MBS
Clamped on axle beam	Yes	Yes
Ride height	210-420 mm	210-420 mm
Air spring Ø	300 / 335 mm	300 / 335 mm
Air spring offset	0/25/50/65/90 mm	0/25/50/65/90 mm
Hanger bracket height welded (bolted)	235 (241) mm	235 (241) mm
Hanger bracket bracing	flexible design	flexible design
Axle lift	Optional	Optional

VALX Disc Brake Axles

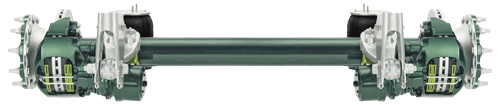

valx_disc500

Specifications	DISK 430	DISK 370
Axle load	9000 kg	9000 kg
Wheel size	22.5"	19,5" / 22.5"
Axle beam	1 piece ~ Ø 146×10	1 piece ~ Ø 146×10
Hub offset	120 / 0 mm	120 / 0 mm
Wheelbolts and dimensions	10 ~ M22 × 1.5	10 ~ M22 × 1.5
Wheel bolt circle	335 mm	335 mm
Brake	Wabco	Wabco
Brake dimensions	Pan 22-1	Pan 19-1
Bearings	Timken: B-145662 ~ B-145649	Timken: B-145662 ~ B-145649
Tyre mounting	Single	Single
Paint system	E-coating	E-coating
Seal	SKF 4 lip	SKF 4 lip
Air suspension	Weweler MBS	Weweler MBS
Clamped on axle beam	Yes	Yes
Ride height	210 - 420 mm	210 - 420 mm
Air spring Ø	300 / 335 mm	300 / 335 mm
Air spring offset	0/25/50/65/90 mm	0/25/50/65/90 mm
L1 / L2	520 / 320 mm	520 / 320 mm
Hanger bracket height welded (bolted)	235 (241) mm	235 (241) mm
Hanger bracket bracing	flexible design	flexible design
Axle lift	Optional	Optional
